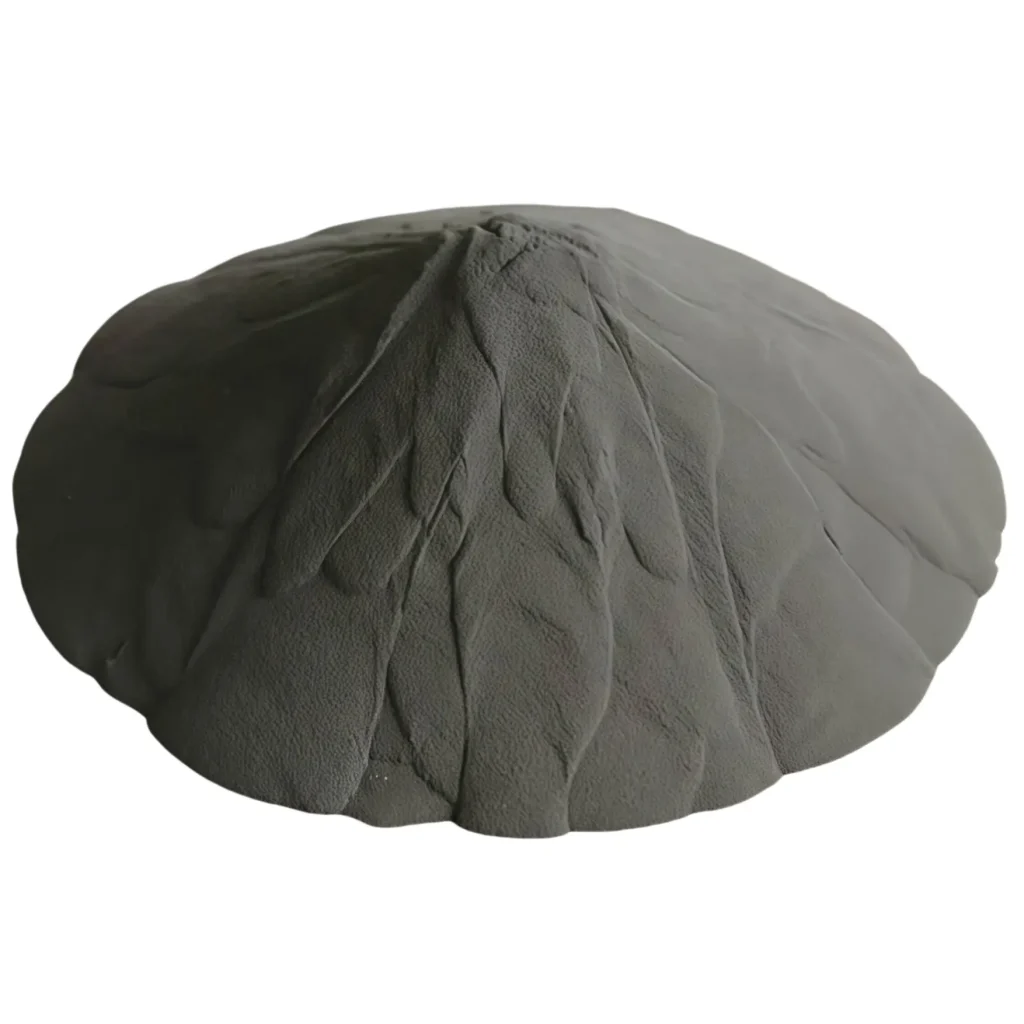

Ni60/15/20/25 Complete Series Nickel Ni Alloy Metal Powder
Product name: Nickel based alloy powder.
Nickel based alloy powders mainly include series such as Ni-B-Si, Ni-Cr-B-Si, Ni-Cr-B-Si-P, Ni-Cr-B-Si-Cu-Mo, Ni-Cr-B-Si-W, Ni Cr, Ni Cu, etc.
Characteristic:
Nickel based alloy powder not only has excellent corrosion resistance and oxidation resistance, but also has excellent resistance to low stress abrasive wear and adhesive wear below 600 ℃.
Application:
Used for aerobic acetylene flame spraying, supersonic flame spraying (HVOF or HVAF), plasma surfacing, plasma spraying, laser cladding, induction remelting, centrifugal casting, 3D printing, and powder metallurgy. Mainly used in gate plates, ball valves, valve seats, plungers, screws, machine barrels, glass molds, laminar flow rollers, wire drawing drums, wire drawing tower wheels, sucker rods, fan blades, screw conveyors, diamond tools and other workpieces.
Classification：
| Powder | Hardness | Chemical Composition | Other | Granularity | |||||||||
| C | Cr | Si | W | Fe | Mo | Ni | Co | Mn | B | ||||
| Ni1A | 15 | 0.03 | 0.46 | 2.3 | 0.46 | Allowance | 0.09 | 0.9 | Cu:20.0 | 180/500 | |||
| Ni20M | 20 | 0.03 | 4.5 | 2 | Allowance | 0.7 | 180/500 | ||||||
| Ni22AA | 22 | 0.2 | 0.1 | 2.85 | 0.5 | Allowance | 0.5 | 1.45 | 180/500、100/270 | ||||
| Ni22M1 | 26 | 0.03 | 0.5 | 3 | 0.5 | Allowance | 0.5 | 1 | 180/500 | ||||
| Ni25 | 25 | 0.2 | 3.5 | 8 | Allowance | 1.5 | 180/500、150/300 | ||||||
| Ni28M | 28 | 0.05 | 0.1 | 2.8 | Allowance | 1 | 180/500 | ||||||
| Ni30AA | 30 | 0.15Max | 2.5 | 2.6 | 1 | 0.3 | 1.4 | 180/500、150/300 | |||||
| Ni31M | 31 | 0.05Max | 4 | 2.4 | 3 | Allowance | 0.9 | 180/500 | |||||
| Ni31M1 | 32 | 0.05Max | 3.5 | 3.2 | 3.0Max | 0.1 | Allowance | 0.3 | 0.9 | 180/500 | |||
| Ni3A | 35 | 0.2 | 4 | 3.2 | 1.4 | Allowance | 0.1 | 1.6 | 150/300 | ||||
| Ni35 | 35 | 0.3 | 10.5 | 3.5 | 10 | Allowance | 2 | 150/300 | |||||
| Ni36M | 36 | 0.05Max | 4 | 2.5 | 3.0Max | Allowance | 0.5Max | 1.1 | 180/500 | ||||
| Ni37M | 35 | 0.15 | 4.5 | 2.8 | Allowance | 0.5Max | 1.0 | 180/500 | |||||
| Ni40AA | 40 | 0.3 | 7.5 | 3.5 | 2.3 | 0.1 | Allowance | 1.7 | 150/300 | ||||
| Ni46M | 46 | 0.05 | 6.54 | 2.8 | 1 | Allowance | 1 | 180/500 | |||||
| Ni50AA | 50 | 0.45 | 11 | 4 | 2.7 | 1 | Allowance | 2.2 | 150/300 | ||||
| Ni55 | 53 | 0.4 | 15 | 4.3 | 5.0Max | 2.5 | Allowance | 3.1 | Cu:2.5 | 150/300 、53/20μm | |||
| Ni6A | 56 | 1.0 | 18 | 5.3 | 5.0Max | Allowance | 1.9 | 100/270 | |||||
| Ni60AA | 60 | 0.78 | 15.9 | 4.55 | 5.0Max | / | Allowance | / | / | 150/300 、53/20μm | |||
| Ni60A | 60 | 0.7 | 15 | 4.0 | 8.0Max | 3.2 | 150/300 | ||||||
| Ni60 | 60 | 0.8 | 16 | 4.0 | 15.0Max | Allowance | 3.2 | 150/300 | |||||
| Ni60S | 60 | 0.8 | 15.5 | 3.8 | 0.1 | Allowance | 3.4 | 150/400 | |||||
| ND500 | 52 | 1.2 | 20.5 | 2.9 | 3.0Max | 5.5 | Allowance | 13.0 | 2.3 | 100/270 | |||
| NF601 | 60 | 0.78 | 15.5 | 3.2 | 5.0Max | 2.5 | Allowance | 3.0 | 4.0 | 150/400 | |||
| Ni60B | 60 | 0.6 | 17.1 | 3.1 | 25 | Allowance | 4.0 | 150/300 、53/20μm | |||||
| Ni60AACuMo | 58 | 0.5 | 15.5 | 4.0 | 3.0Max | 2.5 | Allowance | 3.5 | Cu:2.5 | 150/300 、53/20μm | |||
| Ni60ACuMo | 60 | 0.8 | 15.5 | 4.0 | 15Max | 1.0 | Allowance | 3.5 | Cu:1.0 | 150/300 | |||
| Ni60W | 62 | 0.8 | 16.0 | 4.0 | 15Max | Allowance | 3.3 | 150/300 | |||||
| Ni60CuMoW | 60 | 0.6 | 16.0 | 4.0 | 4 | 2.0 | Allowance | 4.0 | Cu:2.0 | 300/500 | |||
| Ni220 | 31 | 0.15 | 5.0 | 3.0 | 2.0 | Allowance | 2.2 | A1:0.9 | 100/270 | ||||
| Ni220M | 26 | 0.05Max | 4.5 | 3.2 | 3.0Max | Allowance | 1.0 | A1:0.8 | 100/270 | ||||
| Ni330 | 37 | 0.1 | 5.0 | 3.5 | 6.0 | Allowance | Cu:2.5 | 1.2 | 100/270 | ||||
| Ni22APTA | 28 | 0.05Max | 4.5 | 3.8 | 3.0 | Allowance | 1.0 | 100/270 | |||||
| Model | Specifications(μm) | Characteristic description | Main purpose | Physical property | Application process | ||
| Ni15AA | -106/+45 -90/+25 | Low melting point, good self melting ability, excellent wear resistance, heat resistance, and oxidation resistance. | Glass molds, plastic molds, cast iron, machine tool guide rail repair and protection | ①HB170 ②Melting point 1080℃ ③Mobility16s/50g ④Loose density4.7g/cm3 | Oxyacetylene one-step and two-step spray welding processes. | ||
| Ni25A | -106/+45 -90/+25 -45/+15 | Low melting point, excellent self melting properties, and the weld layer has wear resistance, corrosion resistance, and oxidation resistance. | Used for repairing and protecting glass molds, plates, slides, and gear surfaces with small energy and multiple impacts. | ①HRC22/26 ②Melting point 1050℃ ③Mobility15s/50g ④Loose density4.7g/cm3 | Oxyacetylene one-step and two-step processes; Supersonic spraying. | ||
| Ni25AA | -90/+25 -73/+45 | The melting point is extremely low and the wetting property is good, and the solder layer has excellent comprehensive performance. | Used for repairing and protecting glass mold joints. | ①HRC21-24 ②Melting point 850℃/900℃ ③Mobility16s/50g ④Loose density4.6g/cm3 | Oxyacetylene one-step spray welding process. | ||
| Ni45A | -73/+45 -106/+45 | Low melting point, excellent self melting properties, and welding layers with wear resistance, heat resistance, corrosion resistance, and oxidation resistance. | Used for protecting the welding layer of glass mold punches. | ①HRC42-48 ②Melting point 1080℃ ③Mobility16s/50g ④Loose density4.6g/cm3 | Oxyacetylene one-step and two-step spray welding processes. | ||
| Ni45Q | -106/+45 -150/+53 -75/+15 | Low melting point, good self melting ability, and the welding layer has good wear resistance, oxidation resistance, and resistance to nitric acid corrosion. | Used for valve intake and exhaust valves, acid resistant pump shaft with protective coating. | ①HRC43-47 ②Melting point 1070℃ ③Mobility16s/50g ④Loose density4.7g/cm3 | Plasma weldingOxyacetylene spray weldingFurnace melting process | ||
| Ni55AA | -106/+45 -150/+53 | Low melting point, good self melting ability, and excellent wear resistance, heat resistance, and oxidation resistance of the weld layer. | Provide protective welding layers for mechanical parts such as pump plungers and wire drawing wheels. | ①HRC50-57 ②Melting point 1040℃ ③Mobility17s/50g ④Loose density4.6g/cm3 | Plasma welding Oxyacetylene spray welding | ||
| Ni60 | -106/+45 -150/+53 | Low melting point, good self melting ability, and excellent wear resistance, heat resistance, and oxidation resistance of the weld layer. | Pump plunger, fan blades, wire drawing wheel, conveyor roller, etc. are protected by welding layers. | ①HRC59-63 ②Melting point 1040℃ ③Mobility16s/50g ④Loose density4.6g/cm3 | Plasma welding Oxyacetylene spray welding | ||
| Ni60A | -106/+45 -150/+53 | Low melting point, good self melting ability, and excellent wear resistance, heat resistance, and oxidation resistance of the weld layer. | Pump plunger, mud pump rod, die-casting machine mold top. | ①HRC58-60 ②Melting point 1030℃-1060℃ ③Mobility16s/50g ④Loose density4.7g/cm3 | Plasma weldingOxyacetylene spray welding | ||
| Ni60AA | -106/+45 -150/+53 -45/+36 | Low melting point, excellent self melting properties, and excellent wear resistance, heat resistance, and oxidation resistance of the weld layer. | Conveyor roller, pump plunger, piston ring, rubber extrusion die. | ①HRC60-62 ②Melting point 1040℃ ③Mobility16s/50g ④Loose density4.7g/cm3 | Plasma weldingplasma spraying Oxyacetylene spray weldingInduction remelting | ||
| Ni60AA2号 | -106/+45 | Low melting point, excellent self melting properties, and excellent wear resistance, heat resistance, and oxidation resistance of the weld layer. | Conveyor roller, pump plunger, piston ring, rubber extrusion die. | ①HRC60-62 ②Melting point 1040℃ ③Mobility16s/50g ④Loose density4.7g/cm3 | Plasma weldingplasma spraying Oxyacetylene spray weldingInduction remelting | ||
| Ni60AAD | -106/+45 | Low melting point, excellent self melting properties, and high wear resistance, corrosion resistance, and heat resistance of the weld layer. | Pump plunger | ①HRC58-60 ②Melting point 1050℃ ③Mobility15s/50g ④Loose density4.6g/cm3 | Induction remelting Oxyacetylene spray welding | ||
| Ni60AACuMo | -106/+45 -150/+53 -45/+36 | Low melting point and good self melting properties. The welding layer has anti cavitation, anti CL corrosion, wear resistance, and corrosion resistance properties. | Metal wire guide wheels, mechanical seal rings, turbine blades, seawater pump shafts, etc. are protected by welding layers. | ①HRC59-62 ②Melting point 1010℃-1080℃ ③Mobility16s/50g ④Loose density4.6g/cm3 | Oxyacetylene spray welding plasma surfacingLaser weldingplasma spraying | ||
| TN-62 | -106/+45 -90/+25 -73/+20 | Low melting point and good self melting properties. The temperature range is wide, and the welding layer has high wear resistance. | Pressure roller | ①HRC60-63 ②Melting point 980℃-1080℃ ③Mobility16s/50g ④Loose density4.5g/cm3 | Vacuum furnace melting process | ||
| Ni60AAP | -106/+45 | Low melting point, good wettability, and excellent wear resistance, corrosion resistance, and heat resistance of the weld layer. | Repair and protective layer of various mechanical parts | ①HRC61 ②Melting point 980℃-1010℃ ③Mobility16s/50g ④Loose density4.6g/cm3 | Oxyacetylene one-step and two-step spray welding. | ||
